Chicago Pneumatic Backfill Tam

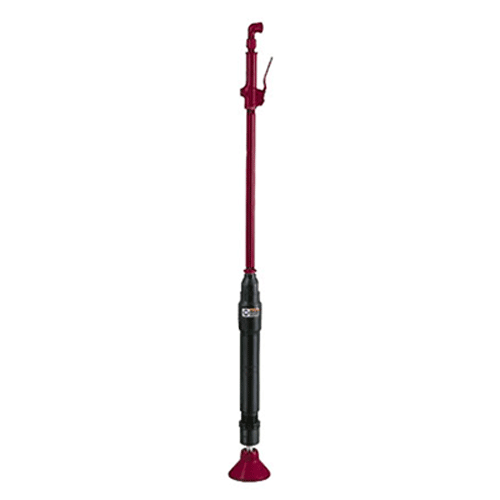

Chicago Pneumatic Air Backfill Tamper
The CP0003 is well equipped to handle light to medium applications

Features:

  • Maximum Power - Slow, powerful blows efficiently and quickly compact all types of backfill, including clay and soils containing high percentages of finely crushed or powdered material
  • Heat-treated cylinder and chrome plated piston significantly extend tool life
  • adjustable packing maintains a positive air seal
  • Aluminum butt held with clamp screw for quick, easy replacement
  • Exhaust deflector directs air, moisture and oil away from operator
  • Integral oiler continuously lubricates tool during operation
  • Well-balanced, smooth operating tool is easily guided by one person
  • 1/2" NPT air inlet thread

Specifications:

  • Valve Type: Simplate
  • Bore and Stroke (in): 11-7/8 x 6
  • Blows/Min: 800
  • Net Weight (lbs): 30
  • Length (in.): 52
  • Air Cons @90psi: 18 cfm
  • Piston Rod Diameter (in): 7/8
  • Piston Rod Butt Size (in): 5

  • SKU: ATL-CP003
  • $1,195.00
